Differential pressure switch 930 with UL approval
adjustable from 20 to 5000 Pascal
Applications
- Monitoring air filters and ventilators
- Monitoring industrial cooling-air circuits
- Overheating protection for fan heaters
- Monitoring flows in ventilation ducts
- Controlling air and fire-protection flaps
- Frost protection for heat exchangers
Downloads
Adjustable differential pressure switch for monitoring overpressure, vacuum and differential pressure of air or other non-combustible, non-aggressive gases.
The switching pressure can be adjusted without a pressure gauge using a scaled adjustment knob. Various versions with overlapping adjustment ranges between 0.2 mbar and 50 mbar are available for this purpose. As standard, the pressure switch is equipped with a transparent cover of protection class IP54.
Technische Daten
Setting ranges:
| Type | Adjustable switching points between | Maximum operating pressure |
| 930.80U | 20 und 200 Pa | 10 kPa |
| 930.80BU | 20 und 300 Pa | 10 kPa |
| 930.84U | 30 und 400 Pa | 10 kPa |
| 930.83U | 50 und 500 Pa | 10 kPa |
| 930.85BU | 100 und 1000 Pa | 10 kPa |
| 930.85U | 200 und 1000 Pa | 10 kPa |
| 930.86U | 500 und 2500 Pa | 10 kPa |
| 930.87U | 1000 und 4000 Pa | 10 kPa |
| 930.87BU | 1000 und 5000 Pa | 10 kPa |
Temperature range:
Medium and ambient temperature from –20°C to +60°C
Storage temperature from –40°C to +85°C
Diaphragm material:
Silicone, free of gas emissions.
Pressure connection:
2 plastic pipe connection pieces (P1 and P2), external diameter 6.0 mm.
Electrical rating:
Standard version: max. 1,5 A (0,4 A) / 250 VAC / 50-60 Hz
Low voltage version: max.0,1A / 24VDC.
Electrical connection:
Tab terminals 6.3×0.8 mm in accordance with DIN 46244 or push-on screw terminals.
Protection class:
IP 54
Arrangement of contacts:
Zubehör

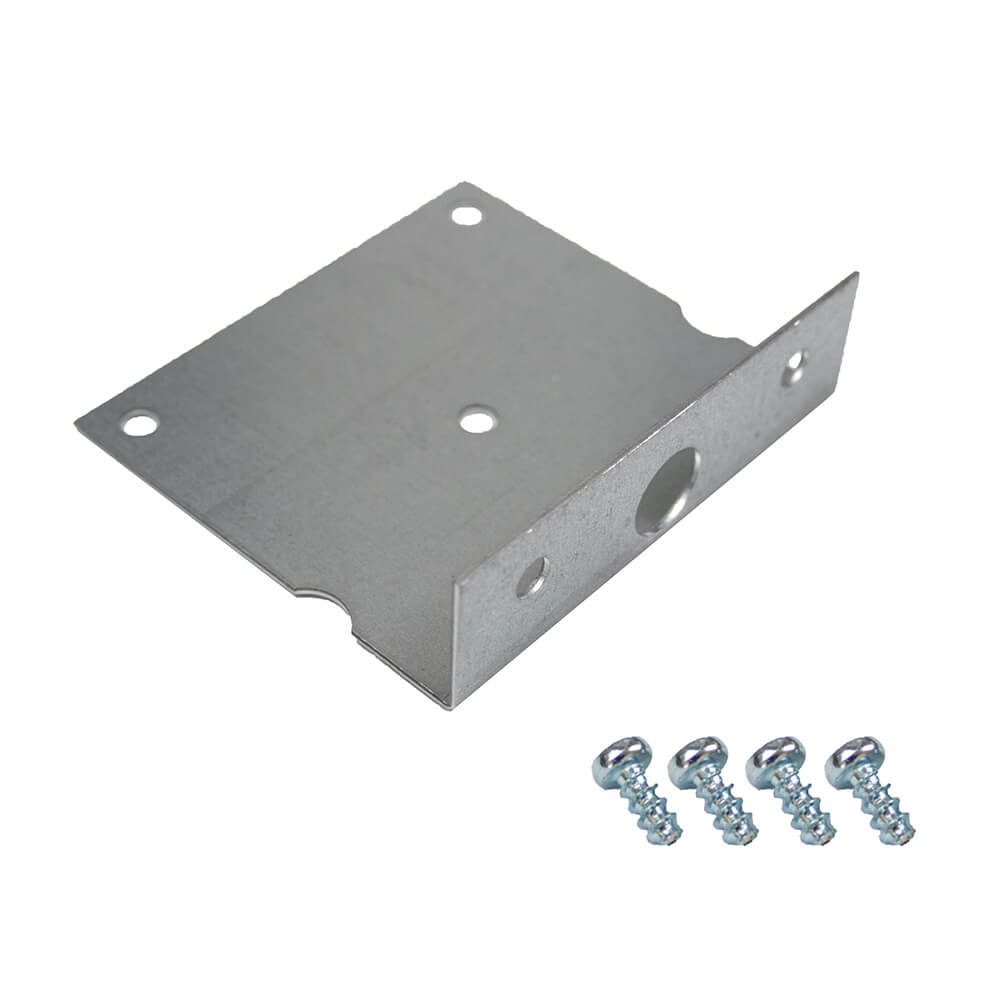

9 6401 Winkelset Metall, L-Form mit 4 Schrauben

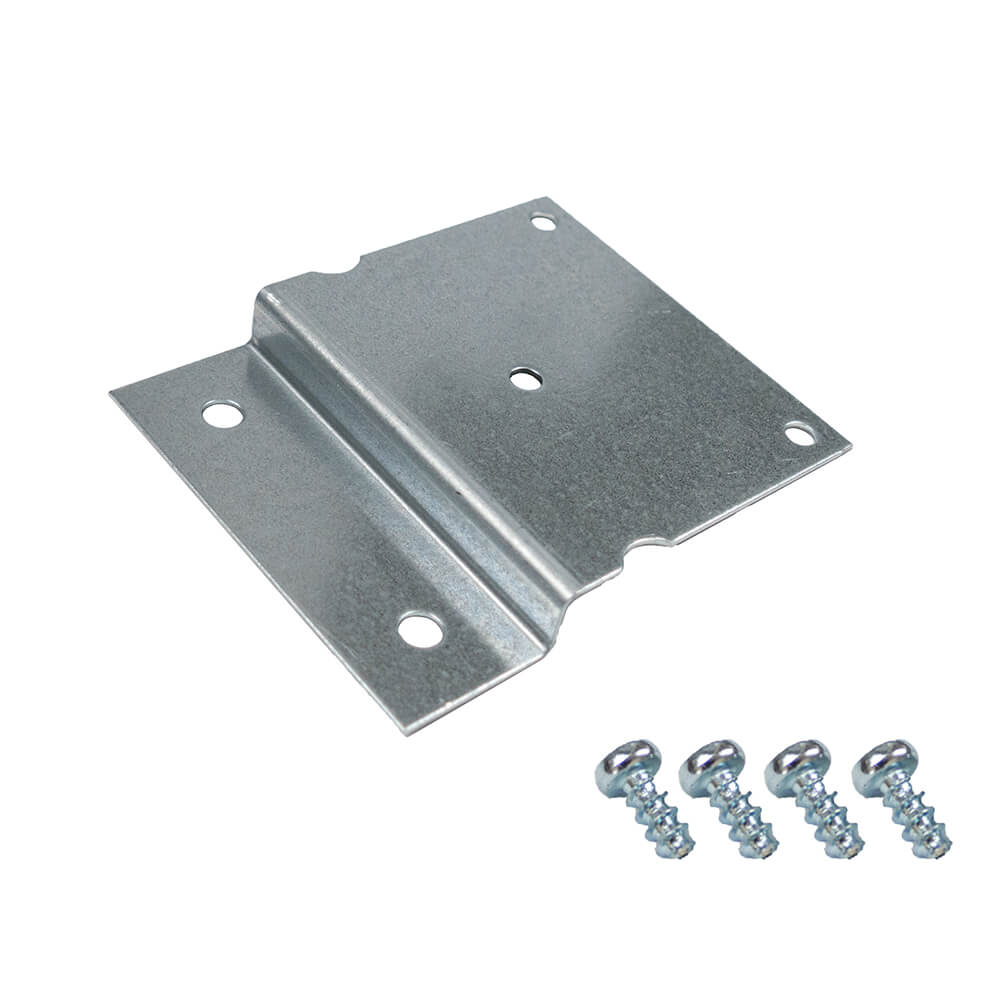

9 6402 Winkelset Metall, S-Form mit 4 Schrauben

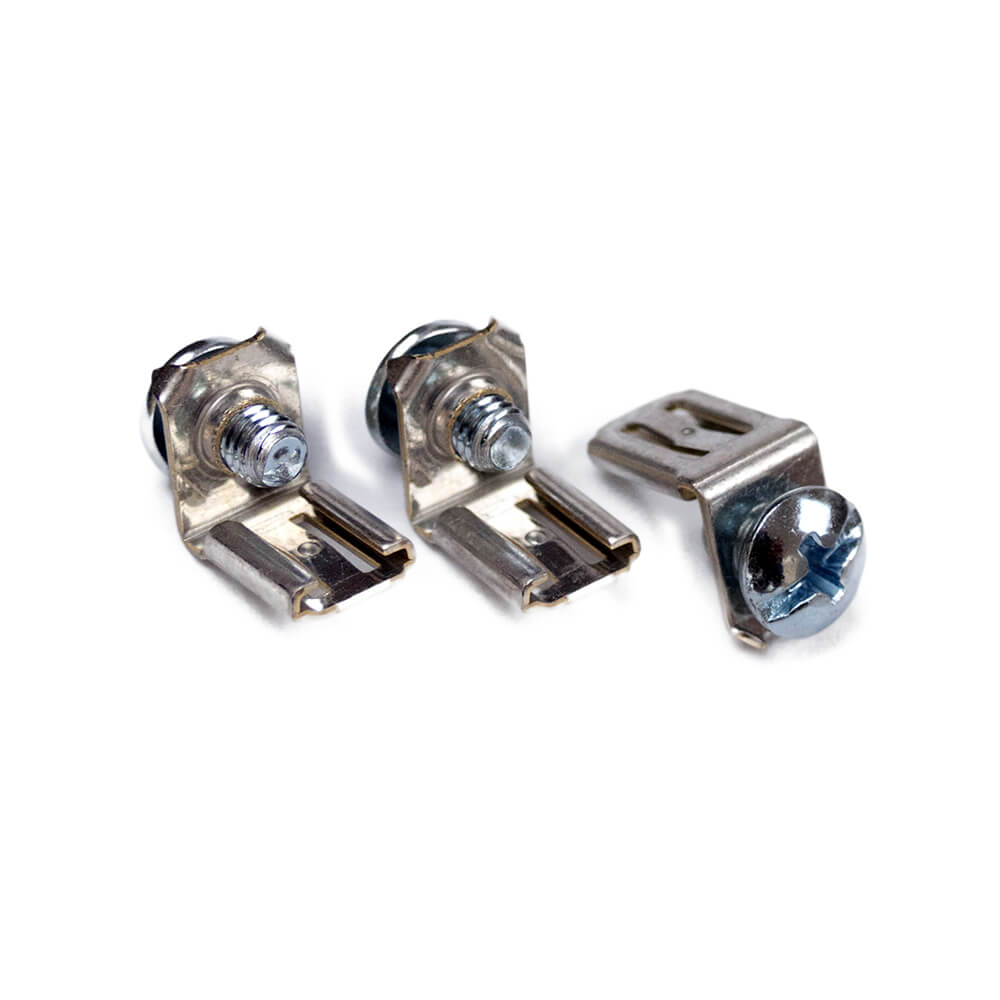

6 6415 Schraubklemmen, 3er Set
5 6424 PVC Schlauch ID 5x1,0mm, Rolle 100m
5 6425 Silikonschlauch ID 5x1,5mm, Rolle 100m
7 6428 Faltschachtel zur Einzelverpackung, ohne Zubehör
7 6429 Faltschachtel zur Einzelverpackung, mit Zubehör

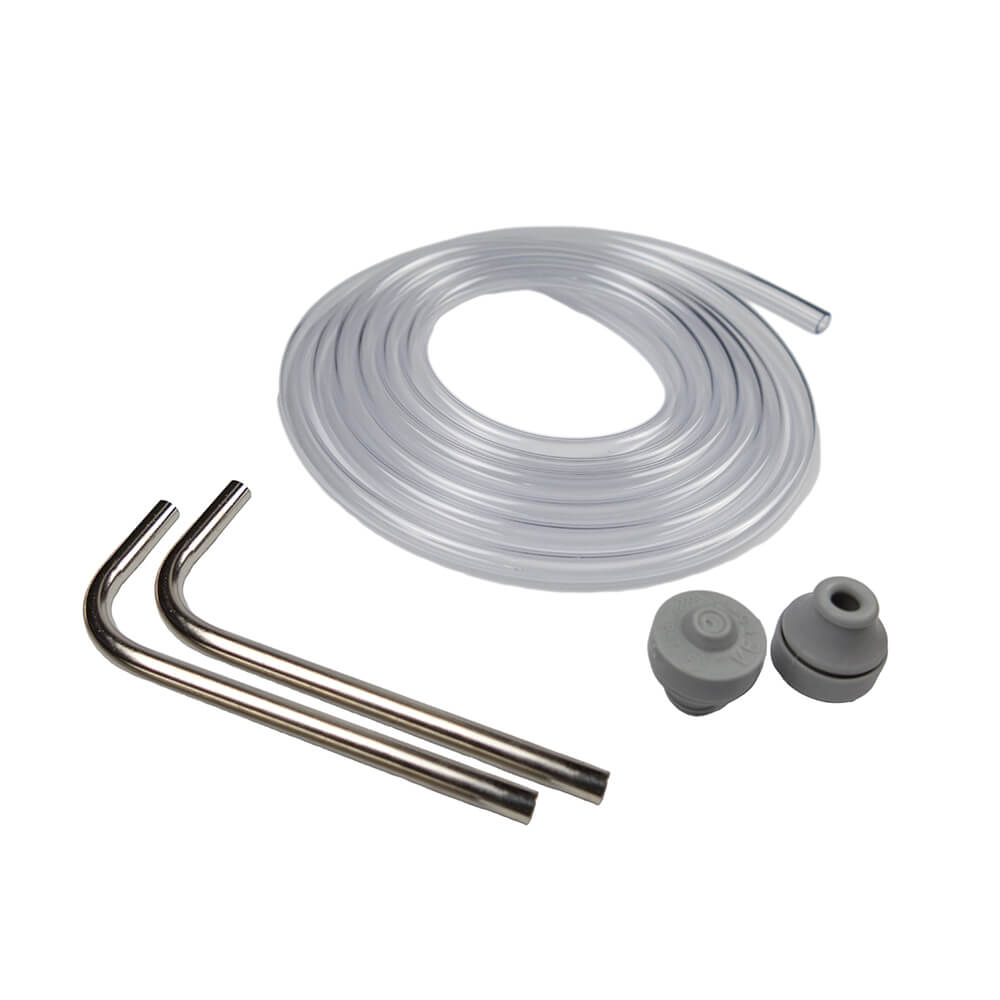

8 6550 Climaset® mit 2 gewinkelten Metallrohren, PVC Schlauch

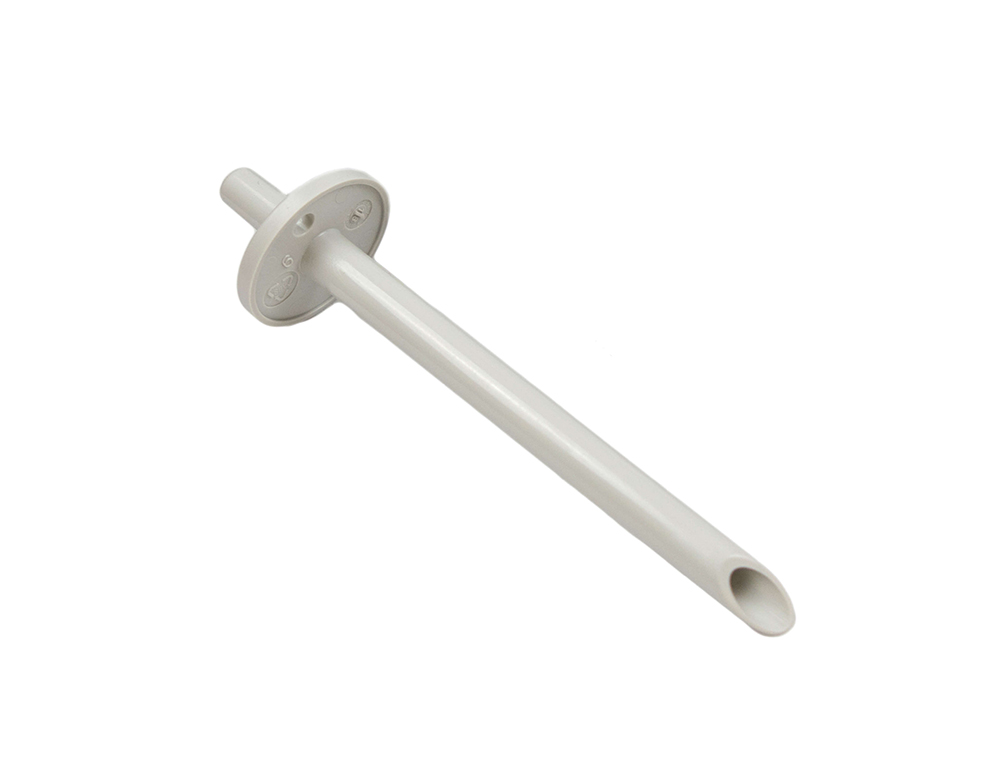

4 6551 Luftanschlussnippel Kunststoff

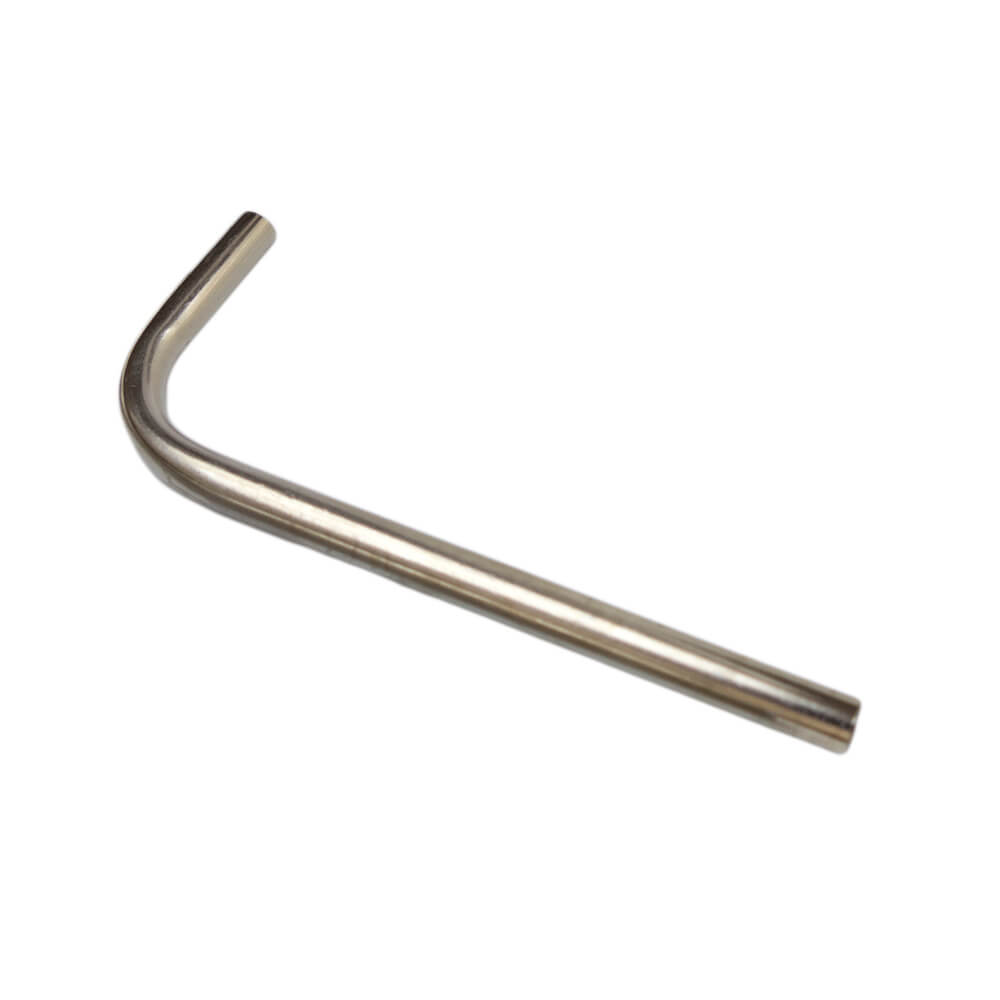

4 6552 Luftanschlussnippel Metall abgewinkelt

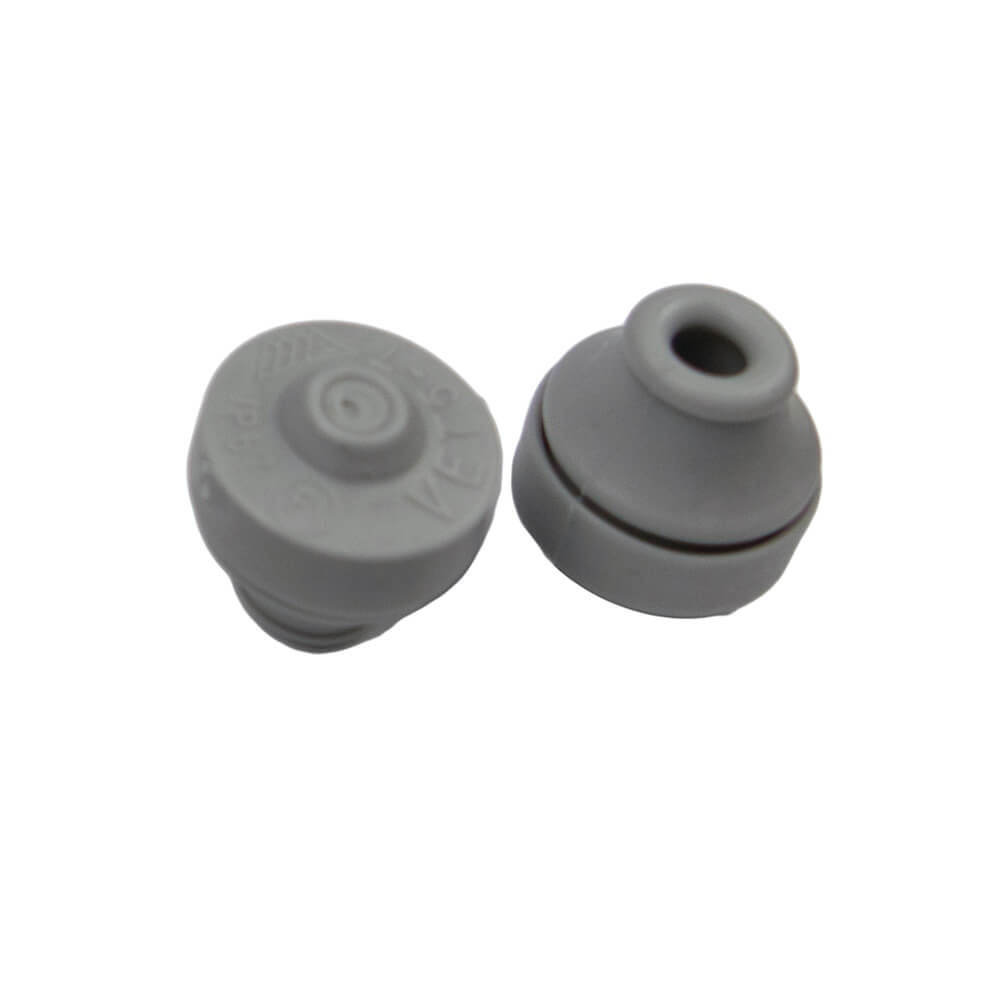

4 6553 Gummidurchführung
8 6555 Climaset® mit 2 Kunststoffrohren, PVC Schlauch

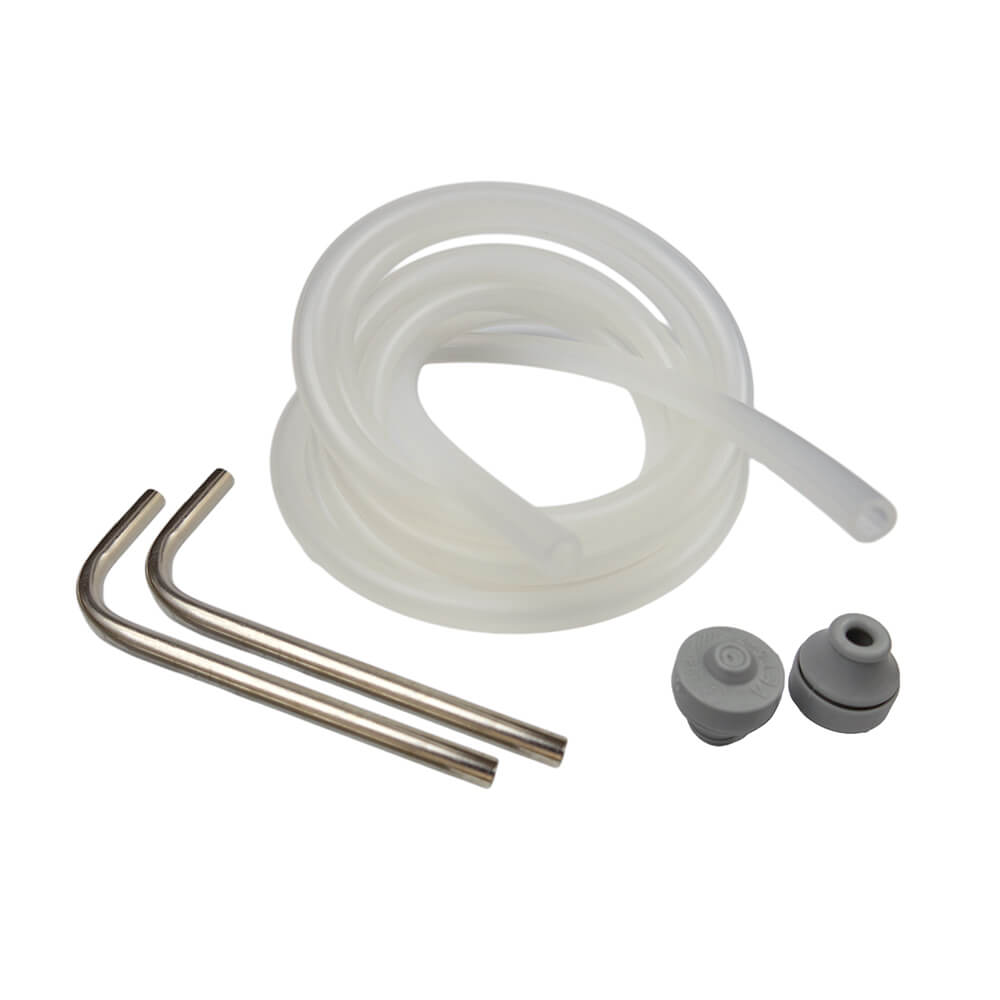

8 6556 Climaset® mit 2 gewinkelten Metallrohren, Silikonschlauch
8 6557 Climaset® mit 2 Kunststoffrohren, Silikonschlauch
